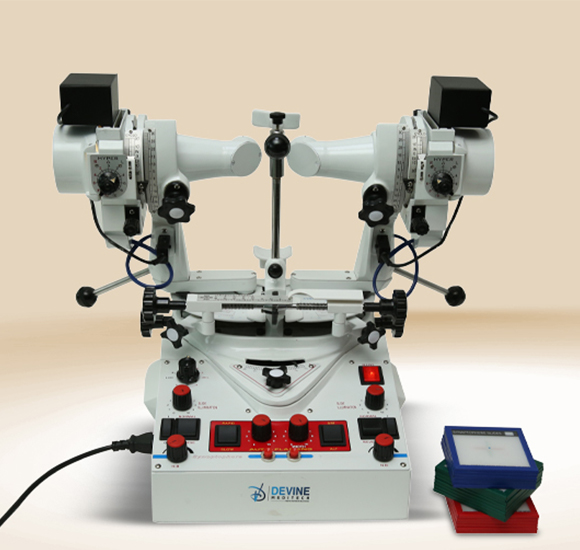

All the standard measurements and treatments are possible on this instrument including assessment of the angle alpha, the objective angle, abnormal retina correspondence, cyclophoria, hyperphoria and horizontal vertical vergences.
| Movement of optical tubes | Horizontal | Adduction +50° Abduction -40° |
| Vertical | Hyper 30°, Hypo 30° | |
| Torsional | Incyclo 20°, Excyclo 20° | |
| Slide Illumination | By rheostat controlled LED Lamp for each slide | |
| Mode & Mode Selection | Five Modes of Slide illumination namely Normal, Selection Flashing Right, Flashing R+L & Auto Flashing | |
| Haidinger's brushes | One Haidinger brush attachment along with rheostat for brush speed control and switch for direction reversal | |
| Dimensions Longitudinal Vertical | 53 cms, Lateral: 32cms 40 cms, Weight: 12.5 kgs. | |
| Power Supply | 220 Volt A.C | |
| Standard | A set of slides containing 9 pairs | |
| Accessories | One power cord, One dust cover, Operating manual | |
